HVLP/MP
TH101AG: Die-casting body
TH101BG: Forged body
Top coating & general purpose
Gravity Feed
High-speed rate, Max. material saving
High efficiency
Max. application speed
No o-ring Design
High-grade S.S tip & needle
Unique dual-color ring & knobs
Environmental, paint saving
H.V.L.P: 200-240mm; 7.9-9.4in
M.P: 240-280mm; 9.4-11in
ZEGO provides the best hvlp spray gun for automotive, and the customers will choose their own suitable tools. TH101AG BEST HVLP PAINT SPRAYER FOR CARS has a gravity feed. With no o-ring design and high-speed rate, best hvlp spray gun for cars will save the material and improve efficiency for general purpose. Actually, our best hvlp spray gun for automotive is environmental-friendly and paint-saving.
| Atomization Technology | HVLP | MP | |
| Model | TH101AG | TH101AG | |
| Nozzle Range | 1.0-2.0mm | 1.0-2.0mm | |
| Pattern(1.3mm) | 200-240mm | 240-280mm | |
| 7.9-9.4in | 9.4-11in | ||
| Recommended Air Inlet Pressure | 2.0bar | 2.5bar | |
| 29psi | 36psi | ||
| Air Consumption | 400l/min | 300l/min | |
| 14cfm | 10.6cfm | ||
| Air Inlet | G/NPT 1/4" | ||
| Cup | 600ml plastic | 600ml plastic | |
| Weight(Gun Only) | 498g | 498g | |
| Material | Body | Aluminium Die-casted/Forged | Aluminium Die-casted/Forged |
| Air Cap | Special Selected Brass | ||
| Nozzle/Fluid Tip | High Grade Stainless Steel | ||
| Needle | High Grade Stainless Steel | ||
| Model | Type of feed | Nozzle | Spray pattern | Fluid output | Air consumption | Air pressure | Cup volume |
| mm | mm | ml/min | NL/min | MPa | ml | ||
| TH101AG | Gravity | φ1.4 | 200-240 | 140 | 400 | 0.2-0.3 | 600 |
| φ1.7 | 240-280 | 250 | |||||
| φ2.0 | 260-300 | 340 |

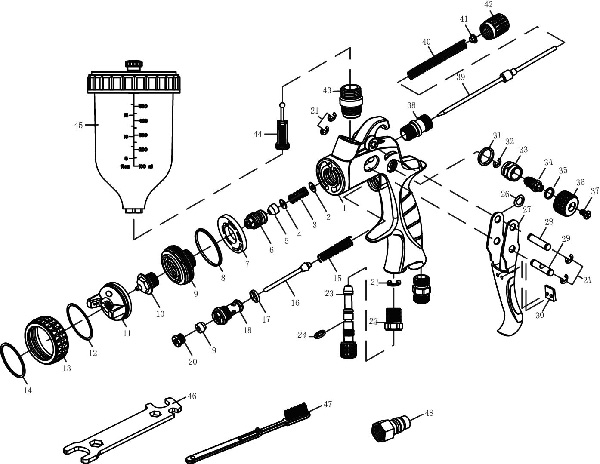

| No. | Description | Qty | No. | Description | Qty | No. | Description | Qty | No. | Description | Qty | |
| 1 | Gun body | 1 | 16 | Air valve spindle | 1 | 31 | Gasket | 1 | Accessories | |||
| 2 | Needle packing screw washer | 1 | 17 | Air valve washer | 1 | 32 | Retainer 4 | 1 | ||||
| 3 | Needle packing spring | 1 | 18 | Air valve | 1 | 33 | Spray pattern adjusts the adapter | 1 | 46 | Multipurpose spanner | 1 | |
| 4 | Needle packing washer | 1 | 19 | Air valve seat | 1 | 34 | Spray pattern adjust lever | 1 | 47 | Brush A | 1 | |
| 5 | Needle packing gasket | 1 | 20 | Sealing screw | 1 | 35 | Washer | 1 | 48 | Male plug | 1 | |
| 6 | Needle packing screw | 1 | 21 | Retainer 5 | 5 | 36 | Spray pattern adjust knob | 1 | ||||
| 7 | Air baffle | 1 | 22 | Air adjust adpter | 1 | 37 | Crosshead screw | |||||
| 8 | Washer for nozzle seat | 1 | 23 | Air adjust knob | 1 | 38 | Needle adjust adapter | 1 | ||||
| 9 | Nozzle seat | 1 | 24 | Gland seal | 1 | 39 | Needle | 1 | ||||
| 10 | Nozzle | 1 | 25 | G1/4(A) joint | 1 | 40 | Needle adjust spring | 1 | ||||
| 11 | Air cap | 1 | 26 | Washer | 1 | 41 | Spring plug | 1 | ||||
| 12 | Washer for air cap | 1 | 27 | Trigger | 1 | 42 | Needle adjust knob | 1 | ||||
| 13 | Locking ring | 1 | 28 | Trigger pin | 1 | 43 | Cup adapter | 1 | ||||
| 14 | Retainer | 1 | 29 | Hinge pin | 1 | 44 | Strainer | 1 | ||||
| 15 | Air valve spring | 1 | 30 | Washer | 1 | 45 | Cup | 1 | ||||
